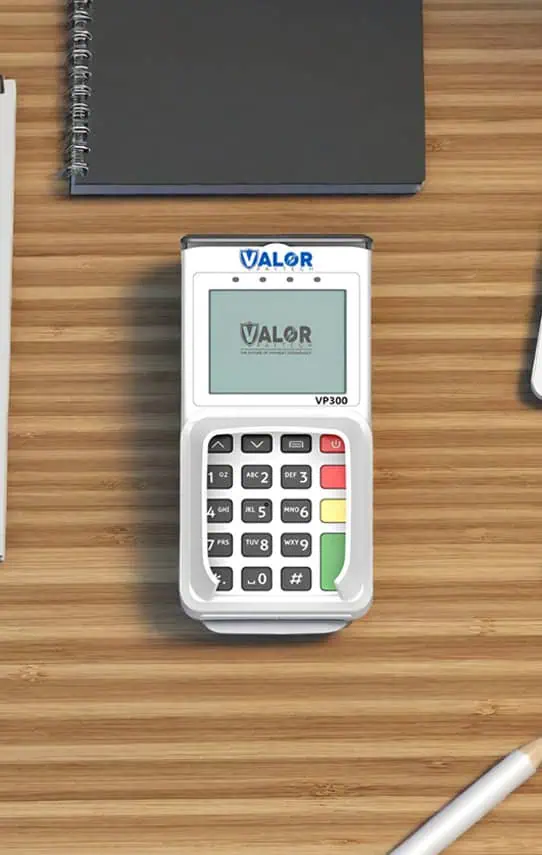

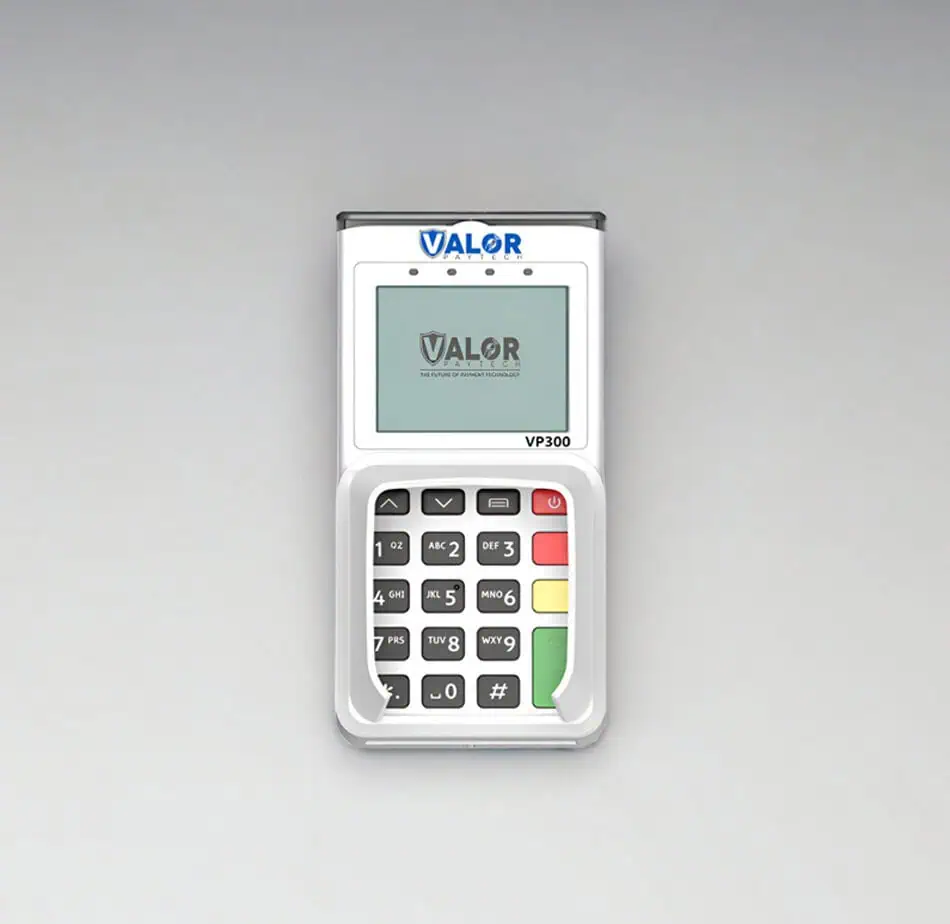

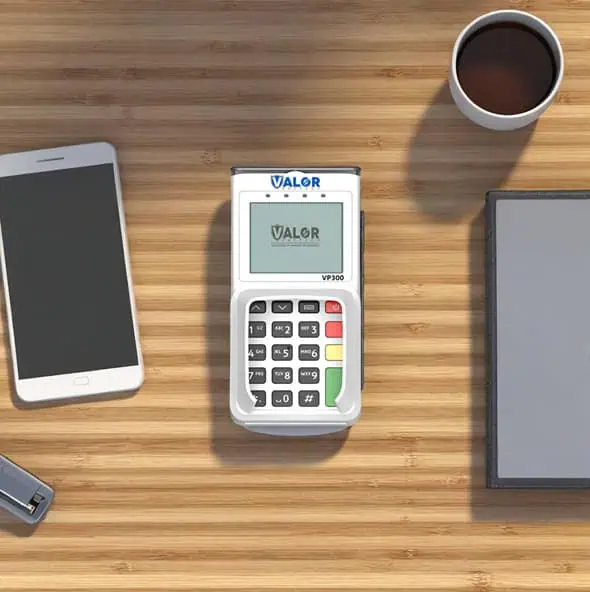

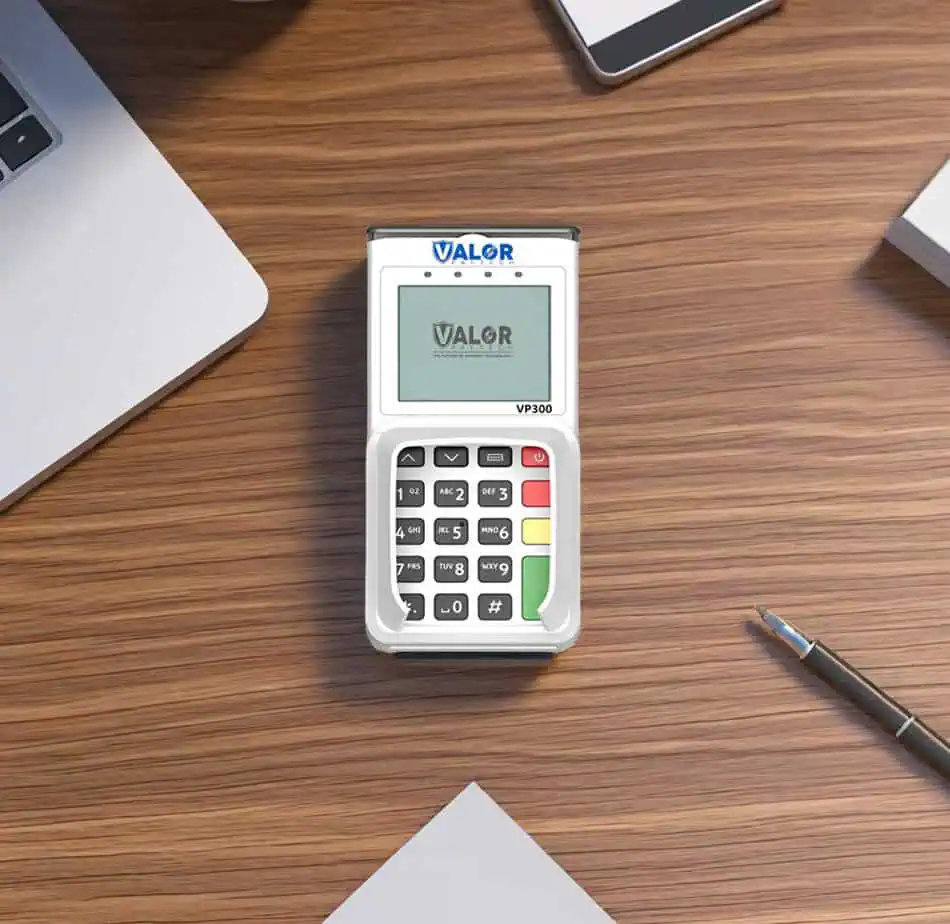

Valor VP300 Smart Pin Pad

The Valor VP300 offers secure, efficient payments using EMV, contactless, or magnetic-stripe technology. It features a touchscreen and digital signature capture, making it ideal for efficient checkout processes.

Improve Customer Experience with the Valor VP300

The VP300 is a secure, PCI-certified PIN pad that helps make payments faster, safer, and easier. This terminal is compatible with EMV, contactless, and magnetic-stripe transactions.

The VP300 has a 2.4-inch touchscreen display and supports digital signature capture. The VP300 is perfect for small to medium-sized companies, as it facilitates payments, speeds up transaction processing, and optimizes the customer experience.

Optimized Features for Faster & Secure Payments

3.5-Inch Touchscreen Display: Extra-large capacitive touchscreen enables interactive, efficient transactions and sleek e-signature capture, while displaying products.
Digital Signature Capture: Enables customers to sign on the device, reducing paper usage while providing a seamless checkout experience.
Included Stylus: Includes a stylus for precise input, which is especially helpful for signature capture.
EMV PCI-PTS 5.0 Certified PIN Pad: Offers industry-standard security to safeguard card information and ensure secure, compliant transaction processing.

VP300 Specifications

32-bit high-performance secure processor with 32MB RAM and 64MB Flash for fast, reliable operations.
2.4-inch color TFT LCD with capacitive touchscreen, 320 x 480 resolution, and electronic signature capture support.
Triple-track, bi-directional magnetic card reader; EMV L1/L2 smart card support (ISO 7816, 1.8V/3V/5V).
Supports EMV Contactless L1, ISO 14443 Type A/B, Mifare, Felica, PayPass, payWave, and other major NFC payment methods.
Built-in buzzer, 10 alphanumeric keys, and 9 function keys for easy operation and feedback.
RS232 serial (RJ11) or USB for seamless terminal integration and peripheral support.
5.0V DC, 1.0A; device measures 141(L) x 71(W) x 36(H) mm and weighs 160g.
PCI PTS 5.x, EMV L1/L2, CE, RoHS certified. Operating temperature 0–40°C, storage -20–60°C, relative humidity 5–93% (non-condensing).

Streamlined Checkout Experience with VP300

Simplified Credit Sale

Start a Sale on the connected terminal/POS (Credit selected by default in most setups).
Enter the amount and press OK/Enter.
Present card on the VP300: tap/insert/swipe (manual entry only if enabled).
If prompted, customer completes tip and signature on-screen.
After approval, choose receipt delivery (commonly SMS/text, email, or print, depending on setup).

Seamless Debit Sale

From the sale screen, toggle to Debit (commonly by tapping CREDIT until DEBIT shows).
Enter the amount and press OK/Enter.
Customer inserts/taps/swipes on the VP300.
Debit transactions typically prompt for PIN (and may prompt for tip if enabled).
Select receipt delivery method (SMS/email/print varies by configuration).

Faster Refund Processing

Toggle Sale until Refund appears.
Enter refund amount and press OK/Enter.
If prompted, enter the manager password.
Customer presents card on VP300 (tap/insert/swipe; manual entry only if enabled).
Complete any on-screen prompts, then choose receipt delivery method.

Smoother Void Transaction

Toggle Sale until Void is displayed.
Press OK/Enter and enter the manager password when prompted.
Choose Transaction Number or Card Number lookup.
Enter the transaction number (or last 4 digits of the card), then select the transaction shown.
Confirm the void, then select receipt delivery method.

Get Started with Host Merchant Services Today!

To have our team determine the suggested setup of the VP300 system for your business, fill out the form below.

"*" indicates required fields

Company*

Business Location

Phone

Phone Extension

Do you currently take credit cards?

Yes

Estimated Monthly Volume

Frequently Asked Questions

What payment types does the Valor VP300 support?

The VP300 supports chip (EMV), tap-to-pay (NFC/contactless), and swipe (magnetic stripe) transactions, so customers can pay using the method they prefer and you can reduce checkout friction.

Is the VP300 PCI compliant and secure for cardholder data?

Yes. The VP300 is PCI PTS certified (5.x) and EMV L1/L2 compliant, providing industry-standard safeguards to help protect sensitive card data during in-person transactions.

Can customers sign directly on the device?

Yes. The VP300 supports electronic signature capture on its touchscreen, including a stylus for accuracy, reducing paper handling and streamlining receipts and recordkeeping.

Does the VP300 allow manual card entry?

Manual entry is only available if enabled by your setup/processor. For risk reduction and compliance, many businesses keep manual entry restricted.

Will the VP300 work with my existing POS or terminal setup?

In most environments, yes. The VP300 connects via USB or RS232 (RJ11), making it compatible with many common terminals and POS configurations used by small to mid-sized businesses.

Does the VP300 support contactless wallets like Apple Pay and Google Pay?

The VP300 supports EMV contactless/NFC and major contactless standards (e.g., PayPass/payWave), which typically enables payments from popular tap-to-pay wallets when your processor and configuration allow it.
