PAX A800 Smart POS Terminal

Elegance at the counter and flexibility beyond it!

PAX A800 Smart POS Terminal

Elegance at the counter and flexibility beyond it!

A Smarter Countertop Experience, Built On Android

The PAX A800 is a touch-screen desktop payment solution that blends Android technology with secure payment acceptance in a single device. It’s designed to help merchants streamline checkout and unlock value-added capabilities (like loyalty and in-store product tools) through supported applications and services.

Take fast, secure in-person payments on a 5.7” Android touchscreen, built for chip & PIN, contactless NFC, and magstripe transactions. It comes with optional cameras for barcode/QR scanning and an optional battery for in-store portability.

This terminal option is a great option for supermarkets, fashion & retail, and food & beverage businesses that want a modern SmartPOS experience at the counter (with the option to go portable when configured with a battery).

Get Started

Why Merchants Choose the PAX A800?

  • Take Every In-Person Payment Your Customers Expect: Accept Chip & PIN, NFC contactless, and magnetic stripe payments, so you’re ready for tap cards, digital wallets, and traditional swipe.
  • Scan Barcodes and QR Codes: High-quality cameras (when included) allow the A800 to scan and process barcodes and QR codes, useful for inventory workflows, couponing, digital menus, pay-by-link QR, and more (depending on your software).
  • Strong Security Posture at Checkout: The A800 is certified to PCI PTS 6.x SRED and supports EMV (chip) and recognized contactless schemes. It marginally helps reduce payment data risk during in-person transactions.
  • Connectivity That Fits Your Location: Run on Wi-Fi (2.4/5GHz) with support for 4G and Bluetooth 5.0 (by configuration). Need wired networking? You also get optional Ethernet and an optional HUB (1 LAN, 3 USB) for countertop setups.
  • Keep Selling Through Outages and Busy Rushes: Add the optional 2300mAh battery to minimize interruptions from power issues and support portability around the store or venue.

PAX A800 Device Specifications and Capabilities

  • The device runs on PayDroid, powered by Android 10, and uses a quad-core Cortex-A53 processor clocked at 2GHz, supported by a dedicated security CPU.
  • It includes 8GB eMMC storage with 1GB DDR memory, with an optional configuration of 16GB eMMC and 2GB DDR, and supports microSD expansion up to 128GB.
  • The unit features a 5.7-inch capacitive touchscreen with a 720 × 1440 resolution.
  • It supports Chip and PIN, NFC contactless, and magnetic stripe payments.
  • Camera options include a 2MP front camera and a 5MP rear camera.
  • An optional 2300mAh battery rated at 7.2V is available.
  • The device includes integrated printer support, with the datasheet specifying a paper roll outer diameter of 40mm.
  • Connectivity and power options include a USB Type-C port with OTG support, an audio jack, and power input ranging from 100 to 240V AC with a 5.0V DC/3.0A output.
  • The physical dimensions are 188 × 66 × 79mm, and it is designed to operate in environments between 0°C and 50°C (32°F to 122°F).
  • The device carries PCI PTS 6.x SRED, EMV, and contactless program certifications, along with additional regional certifications listed in the datasheet.

Accept Payments in Seconds with the PAX A800

  • Open your payment app and select Sale / Charge.
  • Enter the amount (and add a tip if your setup prompts for it).

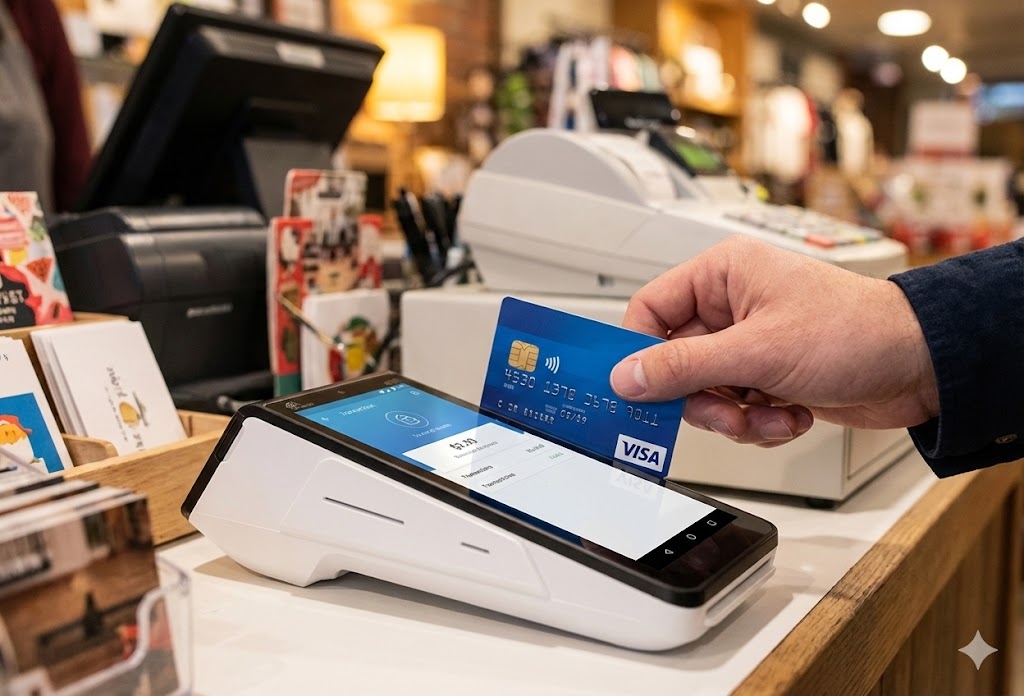

  • Have the customer insert (chip), tap (contactless), or swipe (magstripe).
  • If prompted, the customer completes PIN entry or other verification steps.
  • Confirm approval, then provide a printed or digital receipt (based on your configuration and app settings).

Close Out the Day with Simple Batch Settlement

Some merchant accounts auto-settle daily; others require manual settlement.

In your payment app, open the Menu or Batch section.
Choose Settlement / Close Batch.
Review totals and confirm.
Save the settlement report for end-of-day records.
Refund or void a transaction (typical flow)

Handle Refunds and Voids with Confidence

  • Open Refund in your payment app.
  • Enter the refund amount and locate the original transaction (or follow prompts to present the card).
  • Confirm and provide the receipt.
  • Void a transaction (same-day, before settlement)
  • Open Void in your payment app.
  • Select the transaction from the history list (or enter the reference/receipt number).
  • Confirm void and keep the receipt for your records.
Schedule a Call

Ready to Set Up the PAX A800 with Host Merchant Services?

Fill out the form to get pricing, confirm the best connectivity option (Wi-Fi, 4G, optional Ethernet/HUB), and receive a quick rollout checklist for pairing the A800 with your processing/POS workflow.

"*" indicates required fields

*
Do you currently take credit cards?

Frequently Asked Questions

What security standard does the A800 meet?

The A800 meets PCI PTS 6.x SRED requirements, supporting secure payment processing.

Is there a battery option?

Yes, a battery option is available. The optional 2300mAh battery supports portability and helps reduce interruptions during daily operations.

What connectivity options are available?

Connectivity options include Wi-Fi (2.4GHz and 5GHz), 4G, and Bluetooth 5.0. Ethernet is available as an option, either directly or through an optional hub that adds LAN and USB ports.

Can the PAX A800 scan barcodes and QR codes?

Camera-enabled configurations of the A800 support barcode and QR code scanning. The built-in cameras can capture and process supported codes for payments and operational use cases.

Does the PAX A800 support tap-to-pay?

Yes, A800 supports NFC contactless payment acceptance (alongside chip & PIN and magstripe).

Frequently Asked Questions

How do I manually settle the batch?

From the idle screen, go to FUNC → Batch → Batch Close (names can vary slightly by app/processor).

Can the PAX A80 be used away from the counter?

Some configurations support an optional battery, which can make the unit useful for indoor “semi-portable” scenarios—ask your provider what’s available for your model.

What internet connections can I use?

Many deployments use Ethernet (LAN), with optional Wi-Fi and optional cellular/dial support depending on the hardware version and setup.

Is the PAX A80 a full POS system?

Not by default. It’s a countertop payment terminal that can support Android-based apps and SmartPOS-style workflows, depending on your configuration and processor.

Does the PAX A80 support tap-to-pay and mobile wallets?

Yes, when NFC contactless is enabled with your processor, the A80 supports contactless payments (tap cards and mobile wallets).
