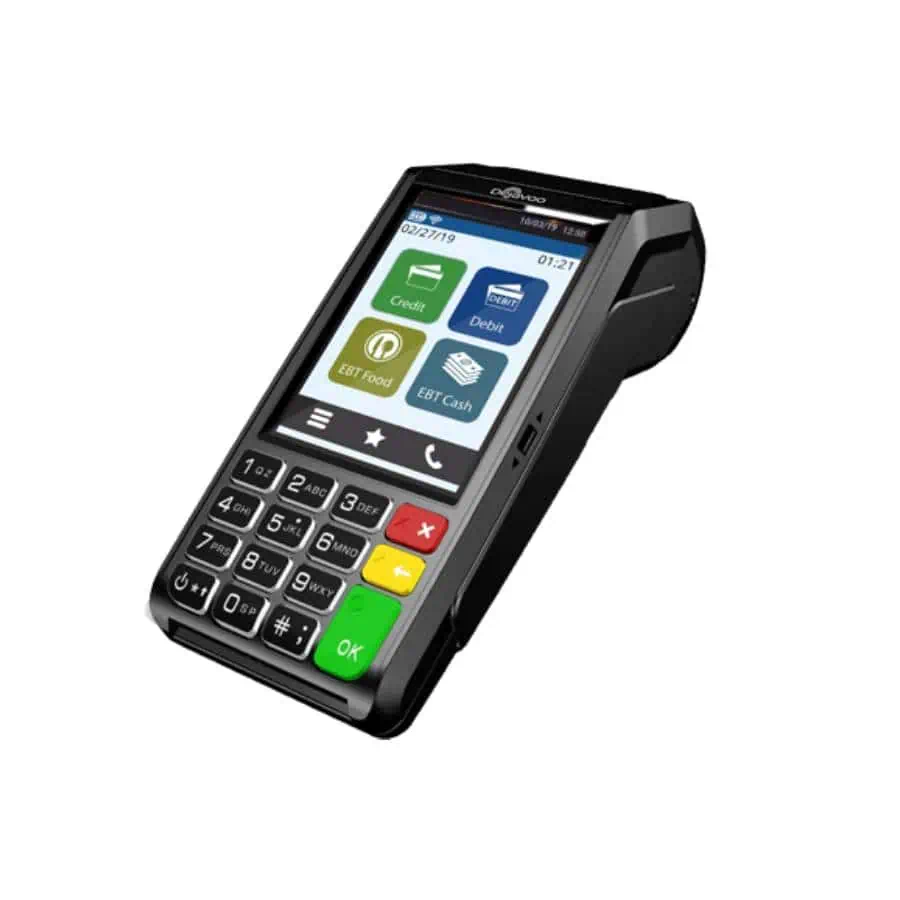

Dejavoo Z9 Wireless Card Terminal
A wireless card terminal designed for secure chip, swipe, and contactless payments in mobile and in-store environments.
Dejavoo Z9 Wireless Card Terminal
A wireless card terminal designed for secure chip, swipe, and contactless payments in mobile and in-store environments.
A Mobile Wireless Terminal Built for Pay-at-Table and On-the-Go Checkout
The Dejavoo Z9 is a portable payment terminal in Dejavoo’s Z-line family, designed for businesses that need to take payments away from the counter, think pay-at-the-table, curbside, delivery, events, and line-busting during rush hours.
It pairs a 4” color touchscreen (with electronic signature capture) with an integrated thermal printer, so you can complete the transaction and hand over a receipt without returning to the register.
Benefits of the Dejavoo Z9
- Accept the Payment Types Customers Expect: Accepts EMV chip, contactless NFC tap, and magnetic stripe swipe payments, with support for PIN debit workflows when enabled.
- Move Faster with a Truly Mobile Checkout: Designed for mobile checkout, allowing merchants to process payments away from the counter using wireless connectivity.
- Receipts Print On-Device: Prints receipts directly on the device with a built-in thermal printer, reducing the need for external hardware.
- Choose the Right Connectivity Model: Available in multiple connectivity configurations, including Wi-Fi-only and Wi-Fi with cellular options to match different business needs.
- Optional Scanning Capabilities: Offers optional scanning capabilities through a 5MP camera supporting 1D and 2D barcodes, with a Zebra imager available on select configurations.
- Security You Can Deploy with Confidence: Built with PCI PTS–certified security to support secure, card-present transactions across the Z9 lineup.
Dejavoo Z9 Device Specifications and Capabilities
- The Dejavoo Z9 supports secure card-present transactions via EMV chip payments compliant with ISO 7816 at EMV Level 1 and Level 2, along with triple-track, bidirectional magnetic stripe acceptance for Tracks 1, 2, and 3.
- Contactless payments are supported via NFC, enabling tap-to-pay transactions.
- The device is PCI PTS certified, with certification levels varying by hardware revision within the Z9 family.
- The terminal features a 4-inch color touchscreen that supports on-screen signature capture for customer verification.
- A built-in thermal printer is included; printer specifications vary by model configuration, including differences in paper width and print speed.
- The form factor is designed for portability, with commonly cited dimensions of approximately 183 × 76 × 50 mm and a weight of roughly 350 grams.
- Wireless connectivity options vary by Z9 model and may include Wi-Fi (typically 2.4 GHz), 4G LTE, and other supported radio technologies across the Z9 lineup.
- Hardware interfaces include a Micro-USB OTG port and slots for SIM, SAM, and TF cards, with TF card storage support commonly referenced at up to 64 GB.
- Power is supplied by a rechargeable 3,100 mAh lithium-ion battery with 5V/2A DC charging support.
Initiate Sales with Ease on the Dejavoo Z9
Run a Credit Sale
- Tap Credit → Sale.
- Enter the amount → OK.
- Tap (contactless) or insert chip card.
- Receipt prints when approved.
Run a Debit Sale
- Tap Debit → Sale.
- Enter the amount → OK.
- Tap/swipe/insert card (as prompted).
- Customer enters PIN → OK.
Keyed (Manual) Credit Sale
- Tap Credit → Sale → enter amount → OK.
- When prompted to insert card, press OK and enter the card number.
- Follow prompts (expiration/ZIP, etc., depending on configuration).
Process a return on the Dejavoo Z9
- Tap Credit → Return.
- Enter the return amount → OK.
- Confirm amount and enter manager password if prompted (the default is commonly 1234, unless changed).
- Present the card (tap/swipe/insert or manual entry if enabled).
Void a Transaction on the Dejavoo Z9
Void (Standard)
- Tap Credit → Void.
- Enter the void amount → OK, confirm if prompted.
- Enter manager password if prompted.
- Present card (tap/insert) to complete.
Void by Transaction Number
- Open Favorites → Void Transaction.
- Enter manager password if prompted → choose By Transaction #.
- Enter the transaction number → confirm to complete and print the void receipt.
Settle (Close) Your Batch on the Dejavoo Z9
- Open Favorites → Settle Daily Batch.
- Enter manager's password if prompted.
- The terminal connects, settles, and prints the settlement report.
Ready to Set Up the Dejavoo Z9 with Host Merchant Services?
Get pricing, confirm whether Wi-Fi-only or Wi-Fi + 4G is the right fit for your routes/coverage, and receive a simple onboarding checklist (connectivity, receipt paper, and transaction test flow) so you can start accepting mobile payments without delay.
Frequently Asked Questions
Does the Dejavoo Z9 support tap-to-pay?
Yes. Dejavoo supports contactless/NFC acceptance for the Z9, alongside EMV chip and magstripe.
Is the Z9 Wi-Fi only, or can it use cellular data?
Both options exist across Dejavoo’s Z9 lineup. There are two models (Wi-Fi-only and Wi-Fi/4G), and the Z9 also includes cellular radios.
Does the Z9 print receipts? What paper does it use?
Yes, Z9 models include a built-in thermal printer. Printer details vary by model (examples include 48mm or 58mm print width and different print speeds).
Is the Dejavoo Z9 a touchscreen terminal?
Yes. The Z9 has a 4” color touchscreen where you can capture an electronic signature.
Does the Z9 have a camera or barcode scanning?
Some configurations do. There’s a 5MP camera/scanner with support for 1D/2D barcode scanning and an optional Zebra barcode imager.
What’s the default manager password?
Typically, the default manager password is 1234.
How do I settle the batch on the Z9?
Favorites → Settle Daily Batch, then enter the manager password if prompted; the terminal settles and prints the report.
